Safety and environmental architecture
Each tile provides a short overview and opens the full corresponding section.
Safety philosophy: no single failure is fatal
- Redundancy in critical systems. Key elements—the shuttle’s onboard reactors, power supplies for accelerator segments and the gateway’s jet rings—have threefold or fourfold redundancy.
- Segmentation and isolation. The tunnel is divided into autonomous 50–200 km sections with independent power, vacuum and emergency mechanical gateways between them. If an adjacent section loses vacuum, its gateway closes only when no shuttle is present, preventing a cascading failure.
- Active and passive levitation control. The main stabilization and imbalance-compensation system is onboard the shuttle. Massive superconducting loops and onboard power units redistribute energy within microseconds to counter local failures in ground systems. In hypersonic curves, the shuttle’s elliptical cross-section and centrifugal force further stabilize it against the guide surface.
- Shuttle and crew first. If an emergency occurs during launch, the protocols prioritize saving the shuttle even at the cost of localized damage to tunnel infrastructure.
Principal risks and their safeguards
| Risk | Cause | Safeguards and protocol |
|---|---|---|
| Loss of levitation or field asymmetry at hypersonic speed | Power-segment failure or damaged winding. | 1. Onboard stabilization with nanosecond response. 2. Inductive braking: at hypersonic speed the shuttle induces current in the tunnel’s passive windings, creating a stabilizing effect. 3. Segmentation confines impact and damage to one section. |
| Failure of the gateway’s gas-dynamic barrier | Failure of one or more jet rings. | 1. A redundant three-ring system with blast protection around each ring. 2. A prelaunch test 60 seconds before departure forms the gas cone without opening the main shutter; defective rings are isolated. 3. Alarm-1 cancels launch on any fault. |
| Loss of tunnel vacuum | Depressurization caused by an accident or damage. | 1. A pressure-sensor network along the entire tunnel. 2. Emergency inter-section gateways for containment. 3. Automatic emergency-stop protocol, Alarm-1 or Alarm-2, if depressurization is detected ahead of the shuttle. |
| Failure discovered after stopping is no longer possible | A critical fault is detected in the final 60–100% of the acceleration route. | Alarm-3: maximum braking, up to 8g, reduces speed. Priority is given to placing the shuttle on a suborbital trajectory even if the gateway is lost. The payload is jettisoned to lighten the vehicle for a subsequent safe ocean landing. |
Emergency-protocol hierarchy
- Alarm-1, prelaunch emergency. Activated before the shuttle starts if the system detects loss of vacuum, magnetic-field faults, failure of any gateway ring or abnormal formation of the gas cone. Action: cancel launch immediately, isolate faulty tunnel sections with gateways, diagnose and repair.
- Alarm-2, early or middle-route emergency, 0–60%. Activated after departure when a fault is detected farther along the trajectory. Action: emergency braking and a stop inside the tunnel. If the fault lies ahead, the shuttle returns to the start under its own power. Otherwise, after stopping it is isolated by gateways in its current section; the section is filled with air and crew and passengers evacuate through the service tunnel and surface shafts.
- Alarm-3, late-route emergency, 60–100%. Activated when a tunnel stop is impossible and failure of the gateway or final segment is likely. Actions:
- Maximum emergency braking, up to 8g, to reduce speed.
- Preserve shuttle integrity first; the gateway remains open.
- Enter an emergency suborbital trajectory and jettison cargo at the apex to lighten the vehicle.
- Land in a designated area of the Indian or Pacific Ocean using all primary and backup systems. The shuttle structure is designed for the overloads and partial destruction of the gateway.
Structural provisions for survivability
- Shuttle. Two independent onboard reactors, in the longer term; a distributed superconducting levitation system; and a reinforced hull designed for extreme loads and thermal shock.
- Atmospheric gateway. Three independent annular jet engines in blast-resistant housings. A mechanical shutter can withstand the shock wave from a partially disrupted gas barrier. Funnel-shaped openings in the gateway’s inner walls instantly relieve pressure and passively vent gas into reserve vacuum chambers. They minimize atmospheric gas entering both tunnel and gateway, limiting damage even after a complete gateway-system failure and preventing the hypersonic shuttle’s pressure pulse from rupturing the structure.
- Tunnel. Segmentation, emergency gateways, duplicated power systems and a technical service tunnel for emergency evacuation and repair.
Critical-infrastructure safety
From the outset, the project includes measures for safe operation with large quantities of hydrogen, hypersonic speeds and gigawatt-scale energy. Passive protection is combined with active monitoring and automatic response, establishing a new safety standard for large energy installations and hydrogen systems.
Acoustic and shock-wave effects

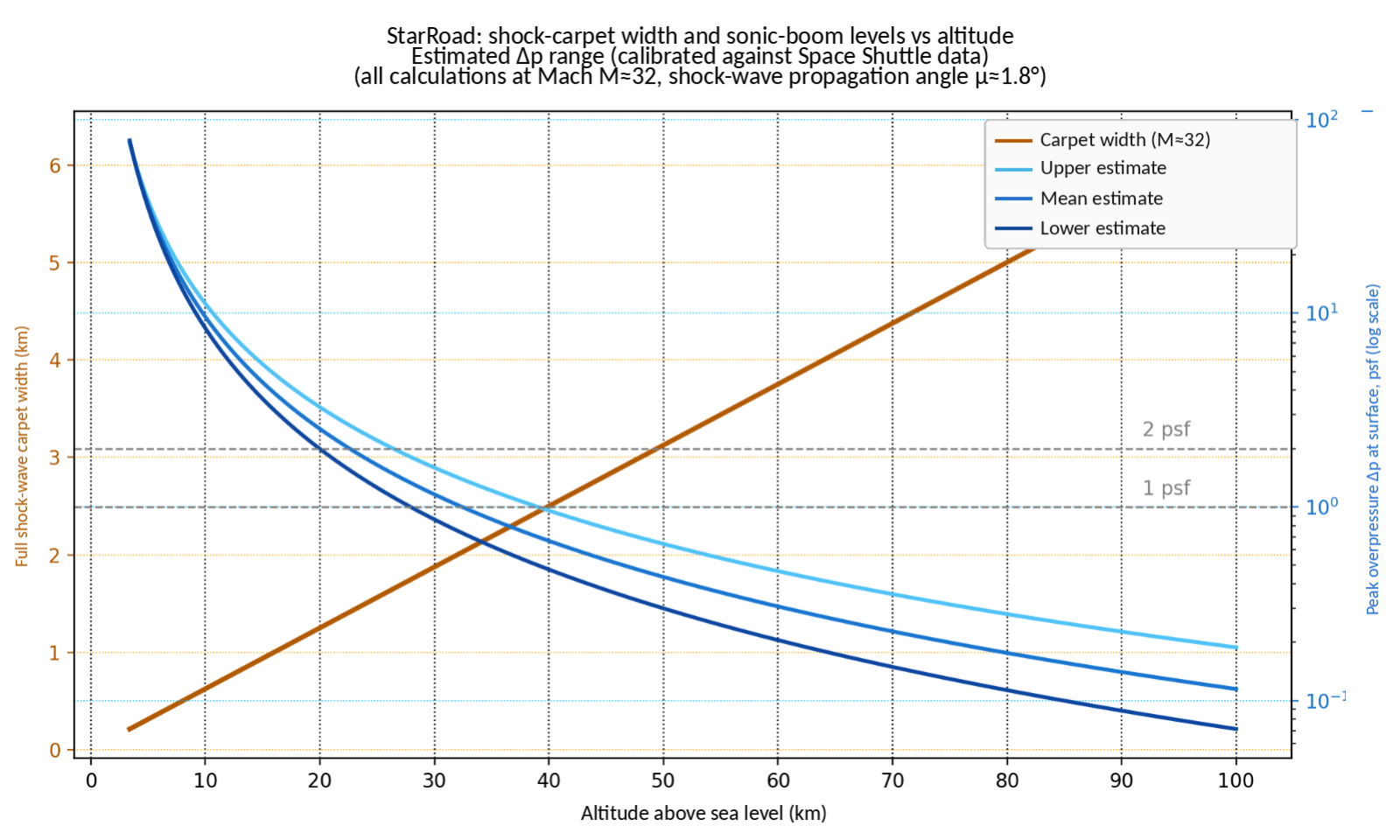

A shuttle leaving at hypersonic speed produces a powerful N-wave sonic boom. Most wave energy travels in a narrow band along the trajectory, reducing effects on ground infrastructure near the gateway. A closed sanitary protection zone is nevertheless established around it; modelling determines the radius and full-scale tests confirm it.
Two peak-overpressure thresholds, Δp, define acceptable surface exposure:
Δp ≤ 2 psf, approximately 96 Pa: damage to buildings and glazing is considered unlikely.
Δp ≤ 1 psf, approximately 48 Pa: the target for populated areas, corresponding to minimal complaint risk and no damage.
Route design and operating limits—the exclusion corridor, weather windows and altitude restrictions—are selected with enough margin to guarantee these thresholds.
Conclusion: StarRoad safety is not founded on a belief that failures cannot occur. It accepts every failure mode as possible and provides predefined, automated responses. That turns the concept from a hypothetical route into a deliberate, dependable and, above all, trusted engineering system.
Closed gateway fuel cycle
The gas-dynamic barrier uses clean, renewable fuel. Electrolysis produces hydrogen from water; the engines use atmospheric air as oxidizer. Once the barrier fires, the principal combustion product is superheated water vapour. This removes the need to deliver and store large quantities of chemical fuel at a remote mountain site, improving reliability and reducing operating cost.
Gas-dynamic barrier
This is the principal working element. Several seconds before the shuttle arrives, the system begins producing a conical supersonic gas flow directed outward along the tunnel axis.
- Source and construction. Three independent concentric annular jet-engine belts—or equivalent hypersonic ramjet belts in the same three-stage arrangement—surround the gateway exit and burn an air–hydrogen mixture. Hydrogen is produced on site by electrolysis. Triple redundancy makes the system fault-tolerant: any two belts are sufficient to form an effective barrier, so one of the three may fail without disabling the gateway. Each belt has independent fuel delivery, control and ignition. The belts are arranged around the exterior in successively recessed steps from the smallest to the largest; the mechanical closure sits inside the gateway behind them. The belts can therefore start before the mechanical closure opens.
- Principal functions.
1) Establish outward-directed pressure that protects the tunnel vacuum while the shuttle passes.
2) Displace and preheat the atmospheric air ahead of the gateway, establishing a controlled gradient across the vacuum–atmosphere interface.
The gas-dynamic barrier is not an aerodynamic shield and does not screen the shuttle from the atmosphere. It extends the transition in time, converting the nearly instantaneous, microsecond-scale impact of cold stationary air into a distributed millisecond-scale load against a heated co-flowing stream. Total aerodynamic force is not reduced, but jerk and high-frequency loading fall sharply, reducing local structural-failure and thermal-shock risks.
- Flow shape. An outward-flowing cone with an ellipsoidal section matching the tunnel and shuttle, tens to hundreds of metres long, produced by three rows of annular nozzles in the gateway’s jet belts.
The gateway does not require a geometrically perfect, stationary or strictly axisymmetric cone. Its operating state is inherently dynamic and permits temporal and spatial variation in flow shape, density and velocity.
The sole rigid operating condition is a positive outward pressure and momentum gradient throughout the shuttle’s exit, completely preventing atmospheric air from entering the tunnel. The system must also prepare the exit region gas-dynamically and thermally. Together these requirements make the gateway substantially more reliable and feasible.
Flow shape is therefore an adaptive parameter rather than a target in itself. It is optimized in real time by integral quantities—pressure, mass flow and momentum—not by a fixed geometry.
- Scalability and testing. Unlike the thousand-kilometre accelerator, the gateway is modular and readily scalable. Stable supersonic-cone formation, synchronization and jet-belt operation can be proven on fully functional 1:5 or 1:10 physical test stands, retiring the principal technical risks before full-scale route construction begins.
Safety system
Hydrogen imposes stringent fire and explosion-safety requirements. The gateway therefore uses redundant hydrogen-leak detection, inert nitrogen purging of lines, explosion-protected equipment, physical separation of electrolysers, storage and engine belts, and directed ventilation ducts that discharge any release safely away from personnel and critical infrastructure.
Perpendicular technical access-tunnel system
Forty inclined transport tunnels, one approximately every 50 km, support construction, ventilation, repair and evacuation. Each is driven by the same tunnel-boring machinery as the main tunnel, at a 30° inclination and an ellipsoidal section of approximately 17.5 × 12.5 m, linking the surface to the main corridor at depths up to 8 km.
- Logistics. Each provides an independent evacuation route for staff and crew after an Alarm-2 emergency stop. Unlike a vertical shaft, an inclined tunnel allows self-propelled vehicles to evacuate dozens of people in one trip.
- Safety. The tunnels provide a second independent evacuation path for staff and crew after an Alarm-2 stop.
- Scalability. Inclined tunnels form connection points for future parallel StarRoad lines. Horizontal branches can be bored from them to new accelerator tunnels, turning the access network into an expanding transport framework.
- Integration with GATES. Collector tunnels are excavated an additional 10–20 m beneath every inclined access tunnel to pre-freeze and stabilize the rock during construction and later generate power.
- Surface terminal complex. Every inclined tunnel ends at a multifunction surface terminal. Each of the 40 terminals is an independent node containing:
- ventilation and gas cleaning to maintain tunnel air conditions and remove spent air;
- a construction base with areas for stockpiling, transshipment and temporary storage of modules, excavated material and supplies;
- an operations and accommodation building for shift staff, including control rooms, rest rooms, workshops and stores;
- a geothermal power station and cooling plant integrated into GATES to manage the heat-transfer fluid in the deep collectors;
- a CO₂ capture and processing station for Direct Air Capture (DAC), closing the GATES loop by liquefying and purifying captured CO₂ and feeding it to the deep collectors as the heat-transfer fluid;
- a connection point for external power grids and communications, including reserve power and broadband.
- road or rail access linking the terminal to the regional transport network;
- an evacuation point at the surface with emergency medical facilities and a helipad.
- Legal and environmental flexibility. Inclined service tunnels allow surface terminals to stand outside protected land—national parks, reserves and water-catchment areas—even where StarRoad passes deep beneath them. This removes the main legal obstacle to routing below conservation areas without placing infrastructure inside park boundaries. Each terminal is built on the nearest unprotected site and connected through an inclined shaft, simplifying consent, reducing environmental pressure and eliminating direct effects on protected ecosystems.
Site selection and scalability
The project must find a gateway site that satisfies dozens of competing requirements: altitude, logistics, safety, scalability and law. Mount Mohi and the adjacent plateau allow StarRoad to begin with a compact high-altitude site and grow into the world’s largest spaceport without relocating.
GATES cooling system
- Deep cooling circuit. GATES collector-and-energy tunnels beneath the accelerator circulate a CO₂-based working fluid in a dense high-pressure or supercritical state. In the normal low-temperature mode, the target cold-stream temperature before the deep collectors is about +5…+15°C. After collecting geothermal heat underground, the CO₂ may exceed +100°C depending on depth, rock heat flux and generation mode. The circuit removes geothermal heat, establishes a cooled zone under the main tunnel and permits safe construction at depths of roughly 5–8 km.
- Hydrothermal Trunk Canal (HTC). The canal follows the StarRoad route beside the service highway, power line and communications, joining the terminals into one surface heat-rejection system.
The HTC is a water channel approximately 5–8 m wide and 2–3 m deep. Several independent high-pressure serpentine pipelines run along its bed and carry CO₂ between adjacent terminals. Water acts as a thermal buffer and intermediate heat-transfer medium.
CO₂ enters the coils from turbines, heat exchangers or compressors at approximately +50…+80°C. Over an approximately 50 km interterminal section it transfers heat to the water and cools to about +22…+35°C, depending on season, humidity, rainfall, night-sky radiative cooling and canal operating mode.
Under normal operation, canal water remains around +22…+32°C, rising locally to +35…+45°C in hot sections. Brief local heating to +50…+80°C may occur near a hot-flow inlet and may suppress some biological activity, but the water is not potable without treatment.
Light selective covers over the canal reflect solar radiation while permitting infrared heat rejection.
- Terminal cooling. Each terminal contains cooling towers, heat exchangers, pumps, booster compressors, turboexpanders and reserve chillers. In normal operation, the HTC passively rejects most low-grade heat.
Cooling towers and terminal heat exchangers reduce the post-HTC CO₂ stream from roughly +22…+35°C to +15…+25°C. When required, reserve chillers lower it to −5…+5°C before the deep collectors. Chillers are peak, emergency or seasonal reserves rather than the continuous primary mode.
- Booster compression and turboexpansion. CO₂ reaches the next terminal cooled but at elevated pressure. It may then pass through a turboexpander, recovering part of the compression energy and cooling further through expansion to approximately −10…+5°C, depending on pressure, flow and required phase state.
The CO₂ then enters the GATES collectors at the required temperature, pressure and phase. This cycle does not create free energy: the compressor adds work, the canal rejects compression heat, and the turboexpander recovers only part of the input. Its benefit is a colder flow with less demand on active refrigeration.
- Redundancy and bidirectional flow. The serpentine lines are duplicated and bidirectional. If one circuit is damaged, flow is rerouted through a reserve pipe or adjacent terminal. Direction can change with thermal load, emergency state and section availability.
- Maintainability. Gates divide the HTC into approximately one-kilometre sections. A damaged section is isolated and pumped down to its minimum operating level or partly drained. After depressurization, crews or robots access the coils without stopping the full corridor. Reserve circuits, flow reversal, increased exchange through neighbouring terminals and temporary chiller operation maintain cooling during repairs.
- Limited water-management role. With a continuous east-to-west gradient, the HTC can sustain slow gravity flow, section flushing and controlled discharge of surplus water as a secondary function.
Night-time equatorial rain can refill the canal through catchments, settling basins, filters and overflows. Because the water never contacts CO₂ directly, local treatment can make it available for limited irrigation, terminal service water, firefighting reserves and green buffer zones.
Water use remains secondary and is permitted only where it does not compromise the HTC’s primary task: cooling CO₂ and maintaining GATES thermal stability.
- Importance to StarRoad. Deep collectors, the HTC, terminal coolers, cooling towers, booster compressors, turboexpanders and reserve chillers form one distributed thermal-management system. It reduces dependence on local refrigeration plants, improves fault tolerance, redistributes heat among terminals and makes deep accelerator construction more realistic.
The surface cooling system also strengthens StarRoad’s economic role: a linear belt of terminals, service roads, energy nodes, water infrastructure, industrial sites and irrigated agricultural zones develops along the route.
Strategic significance of GATES
Beyond power supply and thermal stabilization, the system makes safe and economical ultra-deep construction of the main accelerator—5–8 km or more—possible in principle. Active control of the thermal field and removal of geothermal heat overcome temperature limits that would otherwise prevent such depth. Deep construction in turn permits an optimal S-curve with large radii, providing a gradual climb and a gateway exit at approximately 5–6° while holding cargo and crew loads near 4g over the 2,050 km route. GATES is therefore the technical foundation not only of the power system but of StarRoad’s entire ballistic optimization. A fully robotic fleet of micro tunnel-boring machines excavates the complex.
Energy and thermal autonomy
GATES addresses both requirements together. It generates up to about 15 GW of continuous electrical power, fully covering accelerator demand and creating a commercial surplus, while maintaining a predictable cold environment around the main tunnel. This makes construction and operation possible in deep, geothermally active strata and removes dependence on vulnerable external generation and unpredictable weather.
Carbon footprint
StarRoad follows a model of active environmental stewardship. As the permanent working fluid in the closed GATES circuit, supercritical CO₂ would make the project the world’s largest stationary user of atmospheric carbon dioxide. Millions of tonnes would be removed from atmospheric circulation and retained in the technical circuit for centuries, turning StarRoad into a climate-engineering instrument capable of offsetting emissions from entire industrial sectors.
Social and environmental potential of the Hydrothermal Trunk Canal
The HTC is more than a GATES cooling component. It is transcontinental dual-use infrastructure that also benefits the region:
- Irrigation. Diversion gates allow canal water to irrigate farmland along the route, turning dry areas into an African ‘green belt.’
- Natural replenishment. Frequent equatorial downpours refill the canal.
- Thermal water treatment. After geothermal heat exchangers raise it to +60°C, the water is effectively pasteurized and suitable for safe irrigation, industrial use and, after filtration, domestic and drinking-water needs.
- Gravity flow. The natural gradient from 3,400 m in the east to sea level in the west moves water without pumps and provides free circulation.
- Micro-hydropower. The elevation drop permits a cascade of small hydroelectric stations that supply additional renewable power to local grids and the corridor itself.
StarRoad thus becomes not only transport infrastructure but an agro-energy platform integrated into the region’s sustainable development.
Global overheating
Move energy-intensive industry into space to reduce thermal pollution and pressure on Earth’s biosphere.
Climate and industrial rationale for space-based solar power
Space-based solar power stations should not be described as merely ‘green’ technology. Their role is broader: they can replace carbon generation not by reducing comfort and enforcing consumption limits, but by creating a more powerful energy system.
Conventional climate policy is often perceived as asking society to sacrifice comfort to reduce emissions. StarRoad offers another path: instead of reducing civilization’s capacity, place most new generation in space and expand available energy without increasing power-sector carbon emissions.
This model does not require hydrocarbons to disappear as an industrial resource. They can be phased out of mass electricity and heat generation while being retained and redirected to chemicals, materials, carbon composites, synthetic products and production chains where carbon is feedstock rather than fuel.
For today’s carbon-energy industries, this is not only a threat but a transition route. Companies, states and funds tied to oil, gas and coal infrastructure could receive priority investment opportunities in space-based solar power, orbital energy, hydrocarbon chemistry and carbon materials. StarRoad would then become a mechanism for managed conversion of established energy industries, not merely their competitor.
Scale of energy replacement
One gigawatt of continuous electrical power produces about 8.76 TWh a year. A 2 GW space-based solar power station operating at 99.7% availability produces about 17.47 TWh a year.
Accordingly:
- 100 GW of orbital generation produces about 876 TWh a year;
- 1 TW of orbital generation produces about 8,760 TWh a year;
- 3 TW of orbital generation produces about 26,280 TWh a year, comparable with present global annual electricity consumption.
Global electricity generation in 2024 was about 30.8 thousand TWh, of which fossil generation contributed roughly 18.2 thousand TWh. The scale is clear: even partial replacement of carbon generation requires hundreds or thousands of gigawatts of new dependable capacity, not tens.
Possible replacement rate when StarRoad launches carry space-based solar power stations
The table gives an upper technical estimate: what happens if a substantial share of StarRoad launches delivers one grid-connected 2 GW station per launch. It is neither a forecast nor a promise. It estimates a possible rate only if further conditions are met: series production, completed rectennas and grid connections, political and legal acceptance, financing, maintenance and energy markets able to absorb the output.
| StarRoad operating period | Launches per year in the economic model | New space-solar capacity per year | New annual generation after deployment | Share of 2024 fossil generation, about 18.2 thousand TWh/year | Share of total 2024 world generation, about 30.8 thousand TWh/year |
|---|---|---|---|---|---|
| Years 1–2 | 12–24 | 24–48 GW/year | 210–419 TWh/year | 1,2–2,3% | 0,7–1,4% |
| Years 3–5 | 50–100 | 100–200 GW/year | 873–1,747 TWh/year | 4,8–9,6% | 2,8–5,7% |
| Years 6–10 | 200–300 | 400–600 GW/year | 3,493–5,240 TWh/year | 19–29% | 11–17% |
| Years 11–15 | 500–700 | 1,000–1,400 GW/year | 8,734–12,227 TWh/year | 48–67% | 28–40% |
| Years 16–25 | 1000+ | 2,000+ GW/year | 17,467+ TWh/year | 96%+ | 57%+ |
| Years 26 and beyond | 1500+ | 3,000+ GW/year | 26,201+ TWh/year | 144%+ | 85%+ |
The table shows why space-based solar power is a natural primary market for StarRoad. With one 2 GW station per launch, even early operations create a material energy flow; mature operations become a planetary-scale instrument.
The table must not be read as a guaranteed decarbonization schedule. Actual replacement will be constrained not only by StarRoad’s launch capacity but also by:
- the rate of space-based solar power station production;
- production of power electronics, radiators, trusses, microwave transmitters and control systems;
- construction of ground rectennas;
- power-grid capacity;
- political authorization for microwave power transmission;
- international allocation of benefits and risks;
- insurance and regulation of orbital energy;
- station maintenance, repair and end-of-life disposal;
- competition from terrestrial solar, wind, nuclear, hydroelectric and geothermal power.
The accurate claim is therefore this: StarRoad makes a replacement rate comparable with the scale of global fossil electricity technically possible, but the actual transition rate is set by station manufacturing, grids, rectennas, policy and markets.
Industrial conversion of carbon-based energy
If station production keeps pace with StarRoad launches, terawatt-scale orbital power could be built within one or two decades. It would not eliminate terrestrial energy, but would change its role: ground grids, nuclear, hydro, renewables, geothermal plants and storage would form a hybrid system in which orbital generation supplies the baseload, industrial and export layers.
In this scenario carbon-based energy does not simply ‘lose’. It gains a route for conversion:
- coal- and gas-fired power stations gradually leave baseload generation;
- gas infrastructure moves partly into reserve, chemical and synthetic roles;
- oil and gas companies invest in space-based solar power, rectennas, hydrocarbon chemistry and carbon materials;
- the coal industry can shift toward carbon composites, reducing agents, chemical feedstocks and materials;
- some established energy companies become operators of orbital generation, rectennas and grid distribution.
The main political and economic point is not to demand that powerful industries destroy themselves immediately, but to offer them a transition route. If the carbon-energy sector can preserve or improve margins through space-based solar power and chemical production, resistance to the transition can be substantially lower.
How this differs from a conventional ‘green agenda’
StarRoad proposes energy expansion, not energy austerity. Its climate rationale is not to reduce civilization’s capacity but to move that capacity into more sustainable infrastructure.
That differs from approaches perceived as demanding that people ‘live worse for the climate’. Space-based solar power combined with StarRoad supports a different vision:
- more energy, not less;
- fewer emissions, not less industry;
- more available computing power, not limits on the digital economy;
- more electrification of transport, production and daily life;
- more opportunity for developing regions;
- less dependence on fossil resources as fuels, while retaining carbon as an industrial feedstock.
This approach better matches StarRoad’s civilizational logic: the project does not ask humanity to shrink; it creates infrastructure that permits growth without the former carbon footprint.
Conclusion: space-based solar power as the primary market
Gigawatt-class space-based solar power stations are not a secondary application of StarRoad; they are one of the central reasons for its economic necessity.
Together they:
- create mass demand for super-heavy launches;
- provide transparent commercial revenue through energy sales;
- power the future orbital industrial base;
- create demand for rectennas, relays, tugs, shipyards and service settlements;
- give carbon-based energy industries a new investment niche;
- provide a genuine mechanism for planetary-scale climate action.
Under rocket logistics, space-based solar power stations remain too heavy, costly and operationally complex. Under StarRoad logistics, they become a natural series-produced cargo: not an exceptional mission, but an energy product of large-scale infrastructure industry.
